After successfully corebooting my ThinkPad X220 a while back, I decided to try the same with my ThinkPad T480. Unlike older ThinkPads, the T480 ships with Intel Boot Guard enabled, which means you can’t simply dump and flash the firmware as you could on earlier models.

The deguard utility from coreboot exploits a vulnerability in the Intel Management Engine to bypass Boot Guard. For the payload, I chose EDK2, giving me a full UEFI implementation.

I mostly followed the official coreboot documentation for the Skylake/Kabylake ThinkPads.

The Setup

• ThinkPad T480 (i5-8250U, 16GB RAM)
• Raspberry Pi for firmware extraction and flashing
• SOIC-8 clip for attaching to the BIOS chip
• 6 F/F jumper wires for attaching the SOIC clip to the Pi
• Another Computer for compiling coreboot
• A Phillips screwdriver and a spudger

Update Firmware

Before flashing coreboot, you need to get the stock firmware to the right versions. The coreboot docs require the EC firmware to be at version 1.22 (N24HT37W), and any BIOS version from 1.39 to 1.54 works.

Update the Thunderbolt Firmware

The ThinkPad T480 originally shipped with a buggy Thunderbolt 3 controller firmware that repeatedly wrote diagnostic data to its own SPI flash. Over time, this excessive logging could corrupt the controller and permanently break Thunderbolt functionality. I updated mine as soon as I got the machine.

If you haven’t done this yet, grab the update from Lenovo’s support page and apply it while you’re still on stock firmware.

Update the BIOS and EC

If your EC isn’t at version 1.22 yet, you’ll need to update that too. Download the BIOS update ISO from Lenovo’s support page and extract the El Torito boot image to a USB stick:

curl -fL -o geteltorito https://raw.githubusercontent.com/rainer042/geteltorito/refs/heads/main/geteltorito.pl
chmod +x geteltorito
./geteltorito -o t480_bios_update.img /path/to/downloaded.iso
sudo dd if=t480_bios_update.img of=/dev/sdX bs=4M conv=fsync status=progress

Before booting the updater, go into your BIOS setup and:

• Enable “Flash BIOS Updating by End Users”
• Disable “Secure Rollback Prevention”
• Enable Legacy/CSM boot (the updater boots in BIOS mode)

Boot from the USB (F12 at startup), select option 2, and follow the instructions.

Disassembly

Taking the T480 apart is straightforward:

1. Disconnect AC power and remove the external battery.

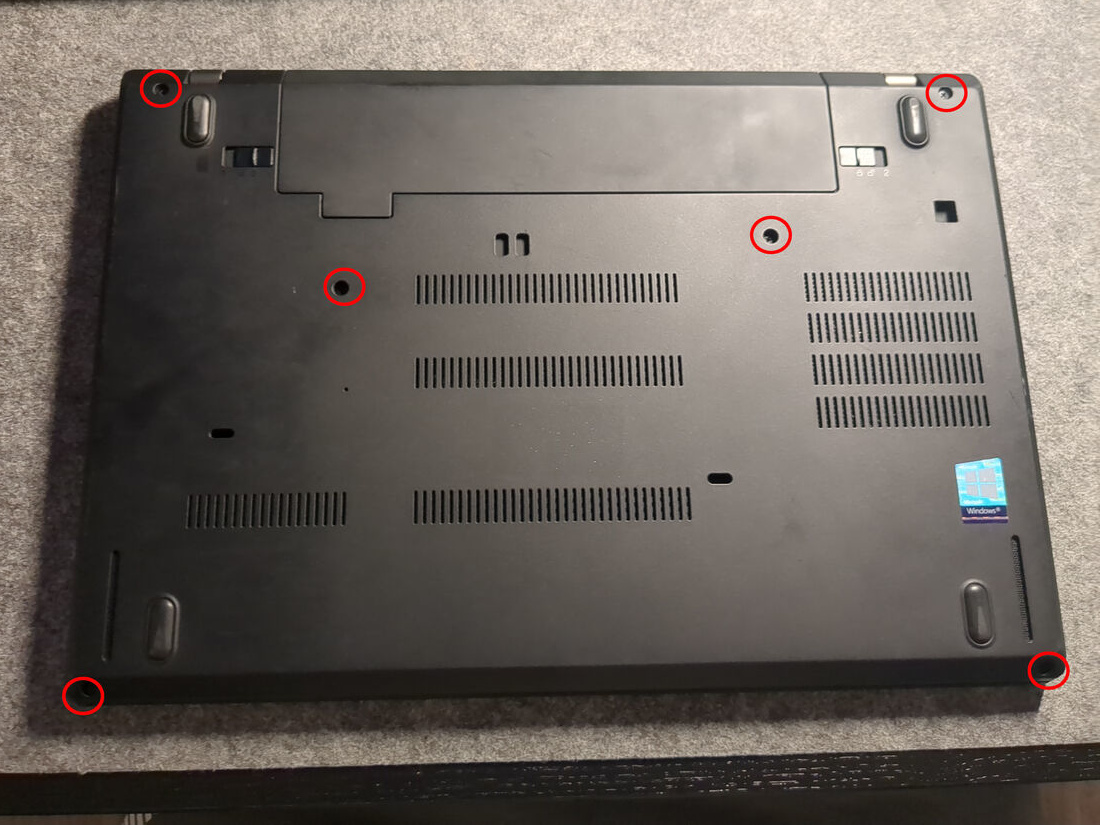

2. Remove the captive Phillips screws on the bottom cover, as shown in the picture below.
3. Disconnect the internal battery, as well as the CMOS battery.
4. Pry off the back cover, making sure to lift up the clips near the battery compartment.

Dumping the Stock BIOS

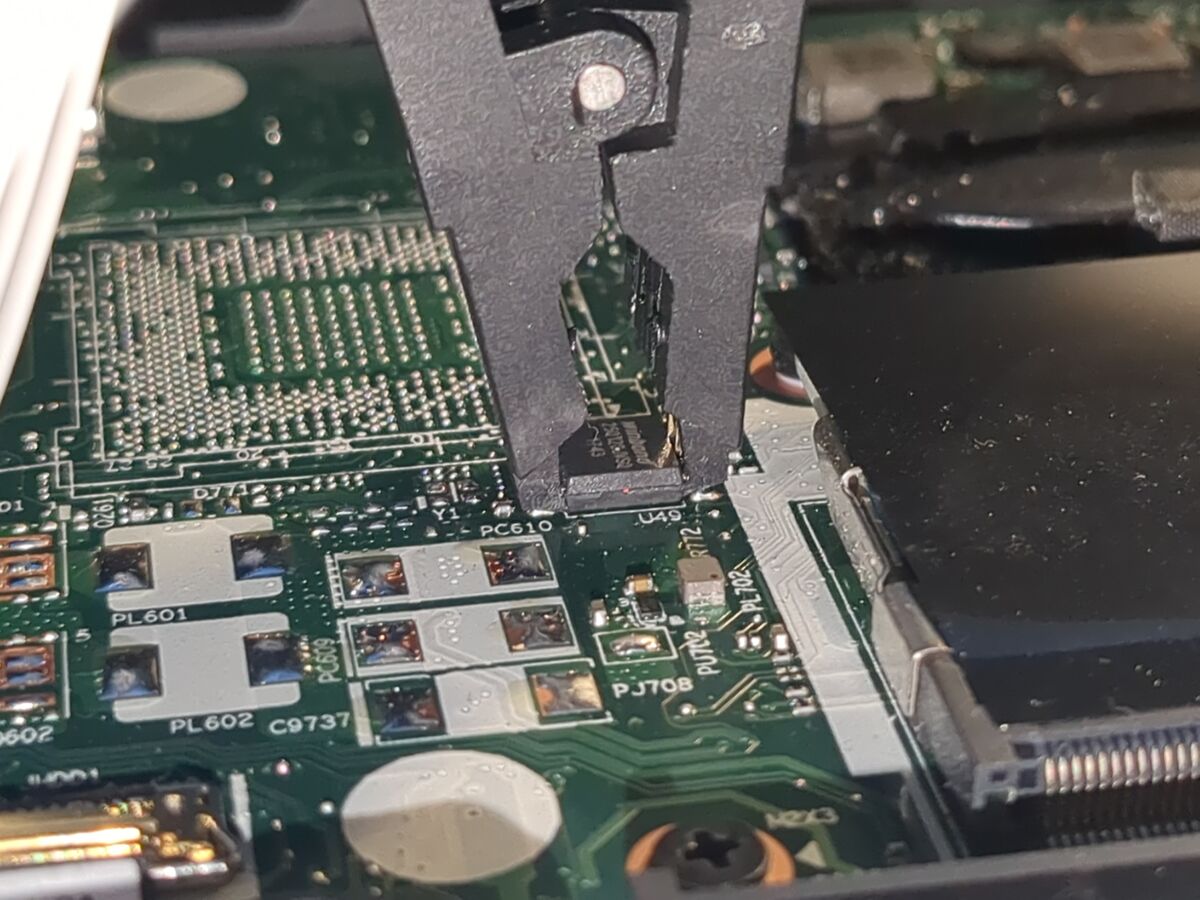

The T480 has a single 16MB SOIC-8 flash chip (mine was a Winbond W25Q128.V), located roughly in the center of the board near the RAM.

Wiring the Raspberry Pi

I used the SPI pins on the Pi’s GPIO header. Here are the pinouts:

BIOS Flash Chip Pinout

                    ______
           CS  1 --|o     |-- 8  VCC (3.3 V)
         MISO  2 --|      |-- 7  No Connection
No Connection  3 --|      |-- 6  CLK
          GND  4 --|______|-- 5  MOSI

Raspberry Pi GPIO Pinout

                        CS   GND
  2                     |     |         40
+-----------------------v-----v-----------+
| x x x x x x x x x x x x x x x x x x x x |
| x x x x x x x x x x x x x x x x x x x x |
+-----------------^-^-^-^-----------------+
  1               | | | |               39
                VCC | | CLK
               MOSI/   \MISO

Wiring Table

Make sure SPI is enabled on the Pi (sudo raspi-config -> Interface Options -> SPI -> Enable).

Installing flashrom

Install the required build dependencies on the Pi first:

sudo apt install git libpci-dev libusb-1.0 libusb-dev

Clone the flashrom repo, compile and install the binary:

git clone https://github.com/flashrom/flashrom.git
cd flashrom
make
sudo make install

Reading the Flash

I took three dumps and verified they all matched:

sudo flashrom -p linux_spi:dev=/dev/spidev0.0,spispeed=1000 -r t480_dump1.bin
sudo flashrom -p linux_spi:dev=/dev/spidev0.0,spispeed=1000 -r t480_dump2.bin
sudo flashrom -p linux_spi:dev=/dev/spidev0.0,spispeed=1000 -r t480_dump3.bin
sha256sum t480_dump*.bin

Building Coreboot

The rest of the process happened on my desktop computer.

Prerequisites

Install the required packages. You’ll need gcc-ada (GNAT) for libgfxinit support (Intel graphics init), nasm for EDK2, and imagemagick:

sudo pacman -S gcc-ada nasm imagemagick base-devel git python

Clone the Repos

mkdir ~/t480 && cd ~/t480
git clone https://review.coreboot.org/coreboot.git
cd coreboot
git submodule update --init --checkout
cd ..
git clone https://review.coreboot.org/deguard.git

Build the Coreboot Toolchain

cd ~/t480/coreboot
make crossgcc-i386 CPUS=$(nproc)

This takes a while.

Extract Blobs from the Stock Dump

cd util/ifdtool
make
./ifdtool -x -p sklkbl /path/to/t480_dump1.bin
mkdir -p ../../binaries
mv flashregion_0_flashdescriptor.bin ../../binaries/ifd.bin
mv flashregion_3_gbe.bin ../../binaries/gbe.bin
cd ../..

You’ll probably see some “Error while writing: Bad address” messages for unused regions (10–15) - these are harmless.

Prepare the ME with Deguard

The T480 has Intel Boot Guard, which needs to be bypassed using the deguard utility. This requires a “donor” ME image from a Dell system:

cd ~/t480

# Download the Dell firmware updater
wget "https://web.archive.org/web/20241110222323/https://dl.dell.com/FOLDER04573471M/1/Inspiron_5468_1.3.0.exe"

# Extract it
git clone https://github.com/vuquangtrong/Dell-PFS-BIOS-Assembler.git
python Dell-PFS-BIOS-Assembler/Dell_PFS_Extract.py Inspiron_5468_1.3.0.exe

# Find and copy the ME binary (should be ~2031616 bytes)
find . -size 2031616c
# Output: ./Inspiron_5468_1.3.0.exe_extracted/1 -- 3 Intel Management Engine (Non-VPro) Update v11.6.0.1126.bin

cp "./Inspiron_5468_1.3.0.exe_extracted/1 -- 3 Intel Management Engine (Non-VPro) Update v11.6.0.1126.bin" \
  coreboot/binaries/me_donor.bin

# Verify the hash
sha256sum coreboot/binaries/me_donor.bin
# Expected: 912271bb3ff2cf0e2e27ccfb94337baaca027e6c90b4245f9807a592c8a652e1

Now run deguard:

cd ~/t480/deguard
./finalimage.py \
  --delta data/delta/thinkpad_t480 \
  --version 11.6.0.1126 \
  --pch LP \
  --sku 2M \
  --fake-fpfs data/fpfs/zero \
  --input ../coreboot/binaries/me_donor.bin \
  --output ../coreboot/binaries/me_deguarded.bin

Set the HAP Bit on the IFD

The HAP bit is a special flag inside the Intel firmware configuration that tells the Intel Management Engine to disable most of its functionality after early initialization. To set this in the IFD:

cd ~/t480/coreboot
util/ifdtool/ifdtool -p sklkbl -M 1 binaries/ifd.bin
mv binaries/ifd.bin binaries/ifd.bin.orig
mv binaries/ifd.bin.new binaries/ifd.bin

Configure and Build

Create configs/defconfig:

CONFIG_VENDOR_LENOVO=y
CONFIG_BOARD_LENOVO_T480=y
CONFIG_IFD_BIN_PATH="binaries/ifd.bin"
CONFIG_ME_BIN_PATH="binaries/me_deguarded.bin"
CONFIG_GBE_BIN_PATH="binaries/gbe.bin"
CONFIG_HAVE_IFD_BIN=y
CONFIG_HAVE_ME_BIN=y
CONFIG_HAVE_GBE_BIN=y
CONFIG_PAYLOAD_EDK2=y

Then build:

make defconfig
make -j$(nproc)

A Note on GCC Compatibility

If you’re on a distro with GCC 14+, you may hit -Werror=discarded-qualifiers errors in both vboot’s cbfstool.c and EDK2’s BaseTools. I fixed this with:

# Fix vboot cbfstool
find . -path "*/host/lib/cbfstool.c" -exec sed -i \
  's/char \*end = strchr(start/const char *end = strchr(start/' {} \;

# Fix EDK2 BaseTools (nuclear option - disables -Werror)
sed -i 's/-Werror/-Wno-error/' \
  payloads/external/edk2/workspace/mrchromebox/BaseTools/Source/C/Makefiles/header.makefile

After these patches, the build completed successfully.

Inject the Original MAC Address

Since I extracted the original GBE from my stock dump, I injected it back in to preserve my real MAC address:

cd util/ifdtool && make && cd ../..
util/ifdtool/ifdtool -p sklkbl -i GBE:binaries/gbe.bin build/coreboot.rom
mv build/coreboot.rom build/coreboot.rom.old
mv build/coreboot.rom.new build/coreboot.rom

Flashing

Copy the ROM to the Raspberry Pi and flash:

scp build/coreboot.rom pi@raspberrypi:~/t480/

Flash the image, making sure the clip still has a good connection:

sudo flashrom -p linux_spi:dev=/dev/spidev0.0,spispeed=1000 -w coreboot.rom

Expected Output:

Found Winbond flash chip "W25Q128.V" (16384 kB, SPI) on linux_spi.
Reading old flash chip contents... done.
Erase/write done from 0 to ffffff
Verifying flash... VERIFIED.

The Result

Reassembled the laptop, popped the battery in, hit the power button and… SUCCESS!!!

Post-Flash Notes

• Internal microphone: Does not work under coreboot - this is a known issue.
• Thunderbolt & USB-C: As of March 2025, Thunderbolt data transfer is not supported upstream by coreboot. Charging, USB-C data transfer and video output through the Thunderbolt port work fine tough.
• Fn keys: Some Fn+F1–F12 combos aren’t handled correctly yet.
• thinkpad_acpi: Add options thinkpad_acpi force_load=1 to a file in /etc/modprobe.d/ for fan control and thermal monitoring to work reliably.
• Future updates: Once coreboot is installed, you can flash internally without the clip:

  sudo flashrom -p internal -w coreboot.rom --ifd -i bios -N


Conclusion

Thats it! Coming from the X220, the biggest difference is the deguard step required to bypass Boot Guard - everything else is similar.

Massive thanks to Máté Kukri for the coreboot port and the deguard utility, and to the coreboot community for the excellent documentation.
